Wood Chipper
BX102RS Wood Chipper
- Model: BX102RS
$9,999.00
Ex Tax: $9,999.00
Description
BX-102 professional tractor wood chipper - shredder system
PTO shaft driven wood chipper for professional and fast processing of wood with up to 23cm in diameter. Suitable for medium and large tractors with 60 to 150hp and Cat II three-point hitch.
Customer-Video BX-102RS with 15 ~ 17cm log diameter
Application :
The Twins Industry BX-102RS wood chipper offers best performance at 70 to 90hp tractor engine power. Wood branches are pulled into the wood shredder with the help of the tractor´s hydraulic system, driving 2 opposed feeding rollers, which drag in the wood into the wood chipper. The Victory BX-102 offers fast and easy operation. The two infeed rollers are mounted with ball bearings on each side so that both rollers are firmly guided, unable to tilt in any direction. The large safety bracket operates the hydraulic functions (IN - OUT - STOP) of the feeding rollers, so that almost all wood jams can be easily solved by the "reverse" gear.
Technology :
Input roller speed is steplessly adjustable for easy adjustment of the chipper performance to diameter and type of wood. Smaller diameter can be pulled in and processed faster by the Victory BX-102 wood chipper than larger or harder wood diameter. Especially for larger tractors with more than a 200bar / 2000mpa hydraulic pressure system, the BX-102 is equipped with a second pressure valve in the input pressure pipe, so that the adjustment of the input roller speed can also be fine tuned when attached to large tractors.
Four 32cm long knives, made of hardened tooling steel, are mounted on a 30mm wide and 197kg heavy rotor of the BX-102RS wood chipper. Wood of up to 23cm diameter can be chipped into 1 to 5cm sized pieces. Additionally mounted winglets on the rotor create the necessary air flow needed to guide even difficult material through the chipper. Inside the massive rotor housing additional replaceable branch breakers are mounted to even shred small branches efficiently. The output hopper height is 240cm, can be turned by 230° and is able to throw the wood chips up to 12m far. Trailers, containers and big bags can be easily filled. An output hopper extension of 50cm from 240cm to 290cm is optionally available, so that even large truck trailers can be easily filled. The Victory BX-102RS has a capacity of up to 15m³/h wood chips per hour.

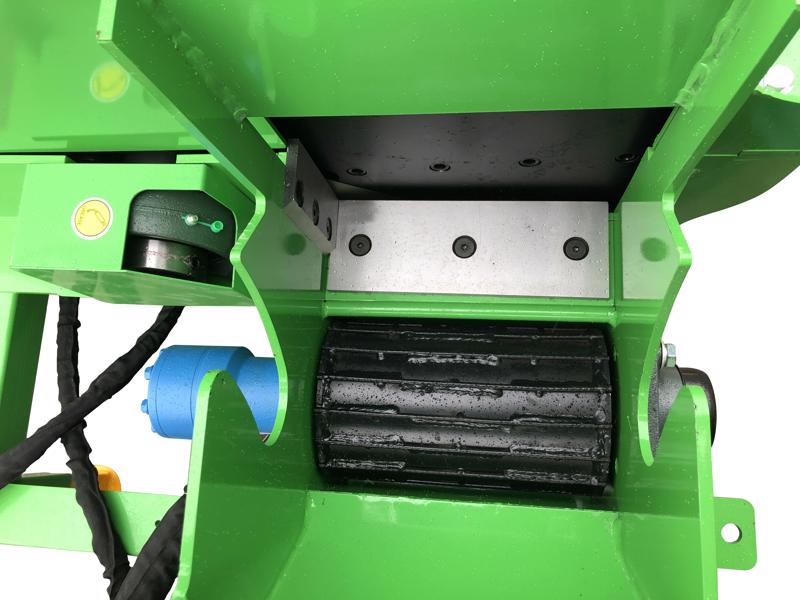

The newest features of the Victory BX-102 wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX-102 wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently. The new L-shaped counter knife improves the cutting of small branches significantly, generating a more even size of shredded material, which is usefull for wood chips heating system.
The new foldable and extremely wide 112cm input chute can be operated by the new safety bar from all sides of the machine. When processing difficult material like fir, spruce or thuja trees higher PTO rpm like 750 or 1000 are very usefull, since a much stronger air suction is generated to blow the material into the desired direction and distance.
The specially designed infeed chute of the Victroy BX-102RS wood chipper allows a minimum distance between the feeding rollers and the rotor knives. This leeds to very small pieces of wood, which the rollers cannot control on their way to the knives, leading to very fast processing speed..
The newest features of the Victory BX-102 wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX-102 wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently. The new L-shaped counter knife improves the cutting of small branches significantly, generating a more even size of shredded material, which is usefull for wood chips heating system.
The new foldable and extremely wide 112cm input chute can be operated by the new safety bar from all sides of the machine. When processing difficult material like fir, spruce or thuja trees higher PTO rpm like 750 or 1000 are very usefull, since a much stronger air suction is generated to blow the material into the desired direction and distance.
The specially designed infeed chute of the Victroy BX-102RS wood chipper allows a minimum distance between the feeding rollers and the rotor knives. This leeds to very small pieces of wood, which the rollers cannot control on their way to the knives, leading to very fast processing speed..
For transportation of the chipper, the large input chute can be easily folded up by only one person and can be secured without any tools. By removing only one bolt, you get access to the rotor and knives of the Victory BX-102RS wood chipper, making maintenance jobs are matter of minutes. The extremely heavy 197kg rotor disc creates a very strong air flow with its speciall design winglets, so that stuck material inside the chipper is virtually impossible. Since the hydraulic rollers can turn backwards instantly, blocked material in the input chute can be pulled out of the chipper within seconds.
. up to 1000 rpm rotor speed
. 4 rotor knives cut the wood up to 67 times per sec.
. PTO shaft with adjustable friction clutch
. rotor housing and feeding roller housing are easy and fast to open
. new L-shaped counter knife for symmetrical shredding results

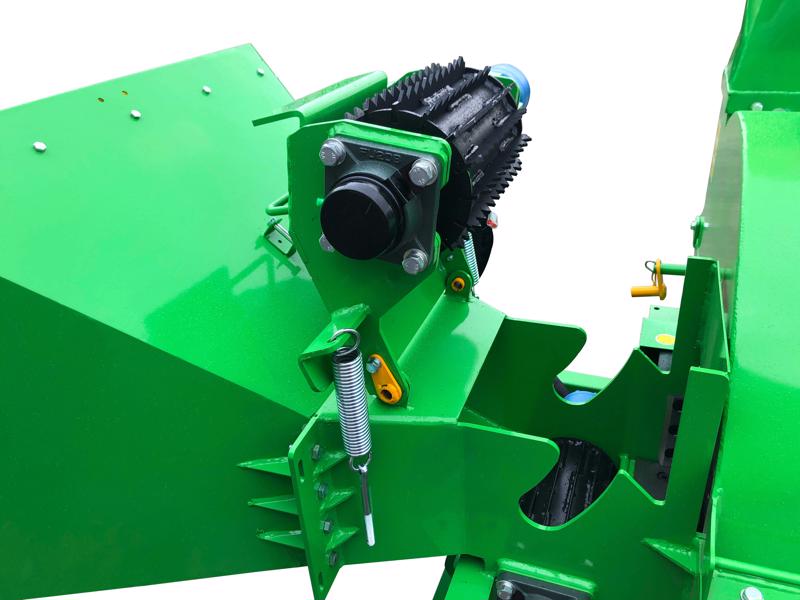

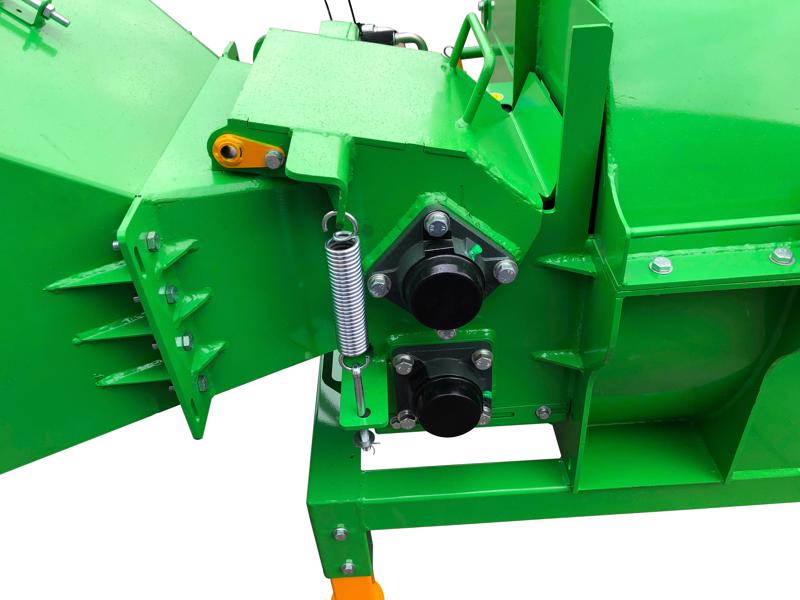

. infeed rollers with double ball bearings
. rotor housing and feeding roller housing are easy and fast to open
. new L-shaped counter knife for symmetrical shredding results
. infeed rollers with double ball bearings
. foldable input chute
. BX-102RS is delivered fully assembled , except for the infeed chute
. BX-102RS is delivered fully assembled , except for the infeed chute
.jpg)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
The Twins Industry BX-102RS comes with a PTO shaft with friction clutch for a perfect and safe power transmission from the tractor.
We from Twins Industry Tractor firmly believe that you will not find a better value for money heavy duty tractor wood shredder in the market. Feel free to compare our product to others in the market and we are sure you will agree.
ATTENTION
Partially assembled machines do not contain any fuel , oil or other fluids or grease needed for operation ! BEFORE USING THE MACHINE please carefully read the mutli lingual user manual.
| DATA | BX-102-RS | |
| Dimension (LxWxH) cm (working position) | 250x155x240 | |
|---|---|---|
| Dimension (LxWxH) cm (transport) | 197x117x225 | |
| total weight incl. PTO shaft kg | 710 | |
| PTO shaft length mm (included in shipment) | 1000 on chipper 1 3/4" 6T | |
| distance between PTO adapter and ground level mm | 769 | |
| Length of hydraulic pipe from 3-point hitch cm | 110 | |
| recommended engine power tractor hp/KW | 60-120 / 45-90 | |
| recommended for max performance hp/KW | 70-90 / 52-68 | |
| min. tractor hydraulic pressure bar / psi / mpa | 165 / 2400 / 16,5 | |
| tractor hydraulic flowspeed L/min / gpm | 13 / 3,5 | |
| volume hydraulic tank L (HLP32 or HLP 46) | - | |
| hydraulic flow speed at 540 RPM L/min | - | |
| hydraulic flow speed at 1000 RPM L/min | - | |
| hydraulic pump pressure bar / MPa | - | |
| hydraulic pump max. pressure bar / MPa | - | |
| recommended hydraulic oil | ||
| rotor diameter cm | 94 | |
| rotor width mm | 30 + fans | |
| rotor weight kg | 197 | |
| number of knives | 4 + 1 + 1 | |
| size of rotor knives / counter knives cm | 32x10x1,7 / 27x9,5x0,9 / 14,5x6x0,9 | |
| adjustment range counter knives mm | 0 ~ 10 | |
| size of feeting chute - largest (W x H) cm | 112 x 74 | |
| size of feeding chute - smallest (W x H) cm | 28 x 23,5 | |
| recommended wood diameter cm | < 23 | |
| distance from ground to feeding chute lower edge cm | 60 | |
| distance between feeding roller and rotor knives cm | < 10 | |
| expected size of wood chips cm | 1 - 4 (depending on wood type) | |
| feeding system | hydraulic in / out | |
| output chute height above ground cm | 240 / optional extension + 50 | |
| output chute turnable | 230° | |
| material strength housing mm | 8 - 10 | |
| painting | powder coating | |
| transport box (LxWxH) cm | 125x115x122 | |
